Mapping Warehouse Bins with SKU

Mapping Warehouse Bins with SKU

Info
Software Plan: Starter, Growth & Enterprise
Info
Account Type: Seller Account, Aggregator & 3PL
Info
Inventory Type: Serialized & Non-Serialized

Feature description

When a specific SKU has been pre-mapped to a particular bin location within the system, the system will automatically suggest that pre-mapped bin during the GRN process for putaway.

Workflow

Step 1: Go to Masters (main menu)  > Bins Master

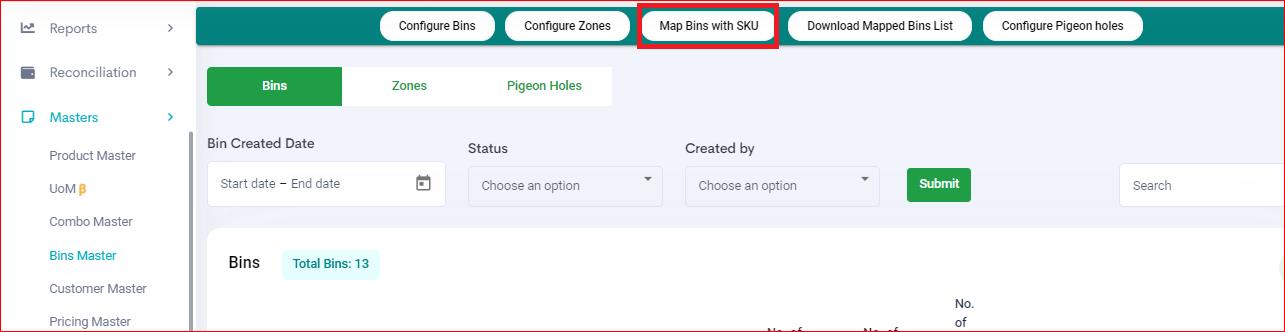

Step 2: Click "Map Bins with SKU"

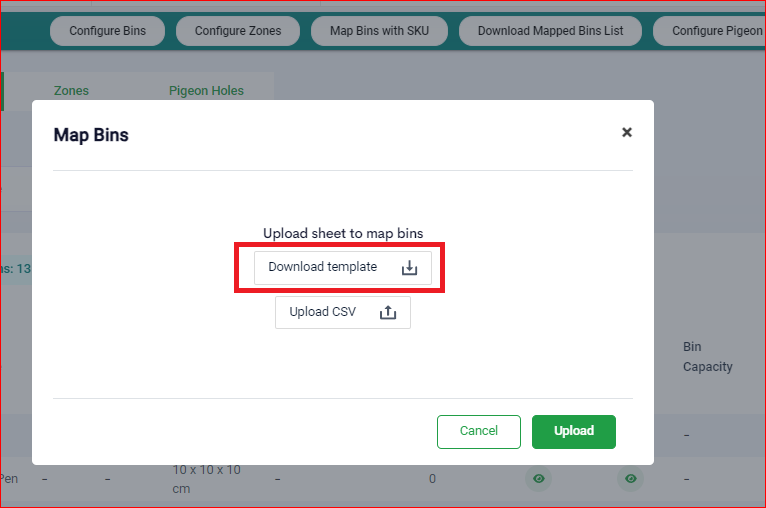

Step 3: Download the Template.

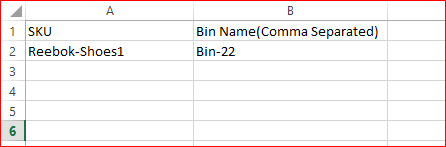

Step 4: Fill in the Columns (SKU and Bin Name). One SKU can be mapped with multiple bins.

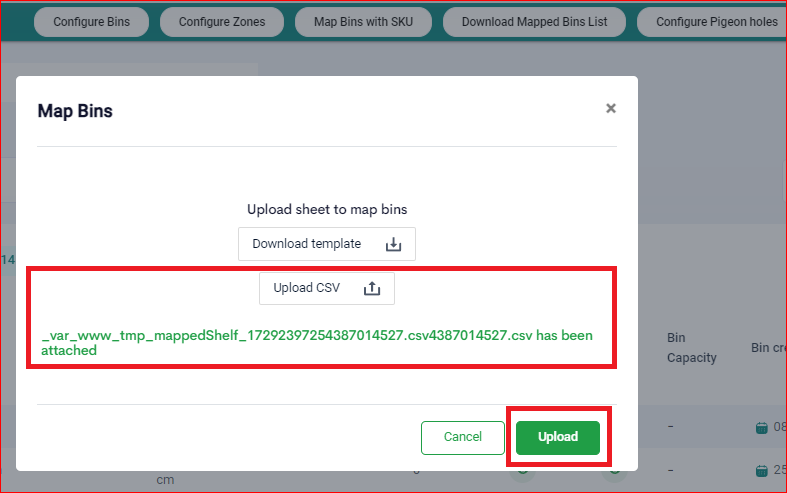

Step 5: Upload the file and click "Upload"

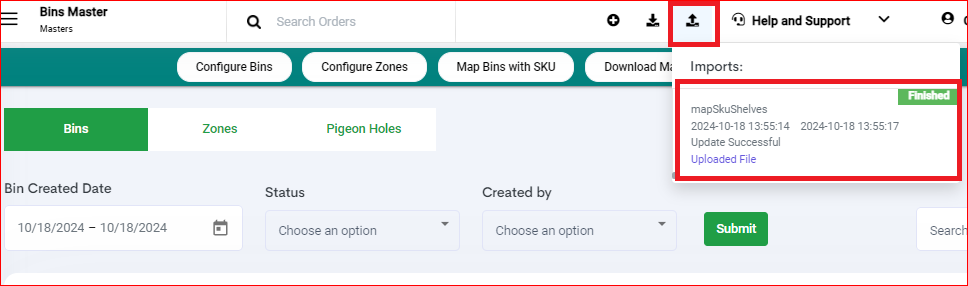

Step 6: Go to the "Import" section to check if the sheet is uploaded successfully.

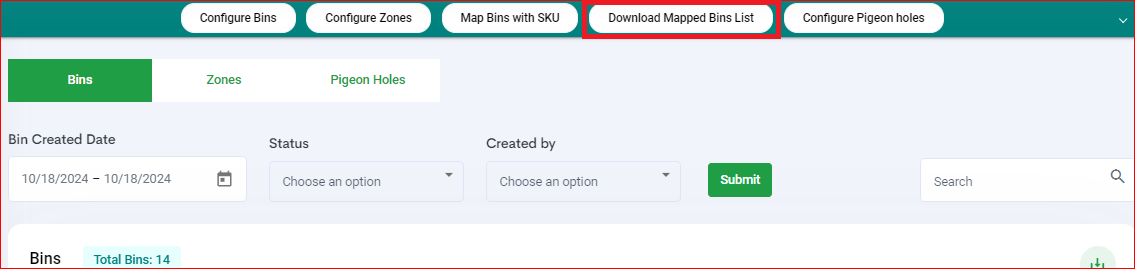

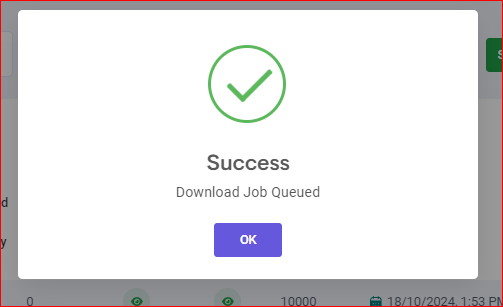

Step 7: To see the mapped bins, click "Download Mapped Bins List".

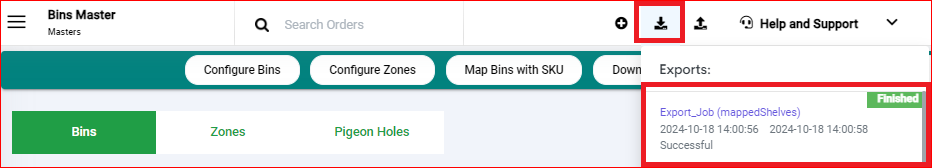

Step 8: Go to the "Export" section to download the sheet successfully.
