Webhook configuration
What are webhooks?
They are user-defined HTTP callbacks that will get triggered when there is a change in events. Webhook detects if there is an event, collects data, and will send that to the respective URL.
Configure webhooks in EasyEcom
There are 12 different webhooks present in EasyEcom.
How to navigate to the webhook settings page?
Click on Meatball menu (3 dots) -> Account Settings -> Other settings -> Webhook Settings
Webhook Settings page:

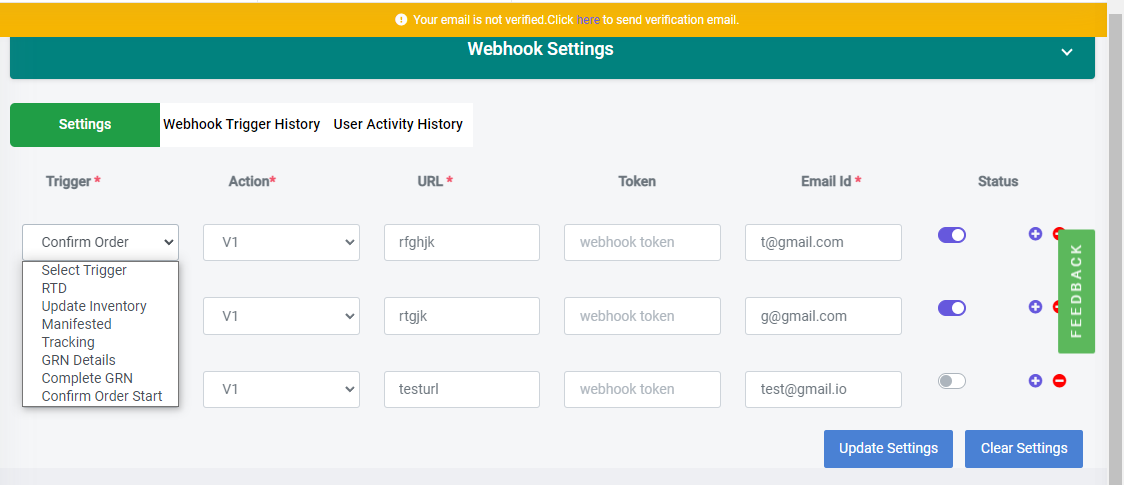

Webhook triggers:

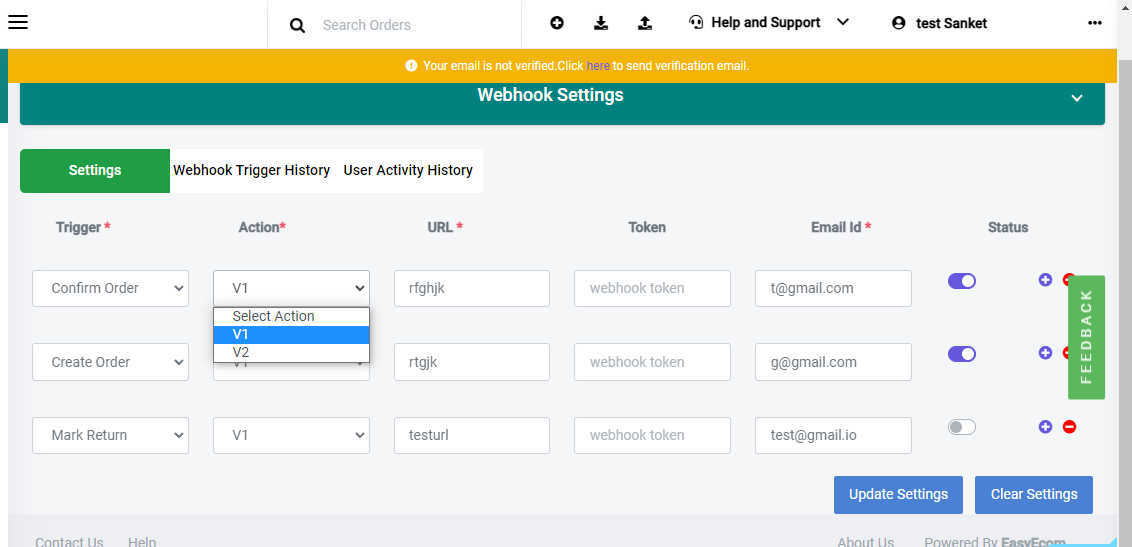

Select the action/version:
V1 - get all orders
V2 - get order details
URL:
Enter the client-provided webhook URL, which will be triggered when that particular event is made.
Status:
The toggle button must be “switched on” for the changes to get updated.
12 webhooks in EasyEcom:
1) Create order:
Once the user creates the order, it will trigger create order action and create order data will be posted on the provided URL.
V1:
{
"orders": [
{
"invoice_id": 129074801,
"order_id": 63557056,
"queue_message": null,
"queue_status": 8,
"order_priority": 0,
"blockSplit": 0,
"reference_code": "TEST_WEBHOOK_1",
"company_name": "AkshataTest",
"warehouseId": 76404,
"seller_gst": "",
"import_warehouse_id": 76404,
"import_warehouse_name": "AkshataTest",
"pickup_address": "Shivaji Nagar",
"pickup_city": "Mumbai",
"pickup_state": "Maharashtra",
"pickup_pin_code": "400011",
"pickup_country": "India",
"order_type": "B2C",
"order_type_key": "retailorder",
"replacement_order": 0,
"marketplace": "Offline",
"marketplace_id": 10,
"qcPassed": 1,
"salesmanUserId": 0,
"order_date": "2023-05-29 05:30:00",
"tat": "2023-05-30 20:13:08",
"available_after": null,
"invoice_date": "",
"import_date": "2023-05-29 20:13:08",
"last_update_date": "2023-05-29 20:13:09",
"manifest_date": null,
"manifest_no": null,
"invoice_number": null,
"marketplace_invoice_num": "TEST_WEBHOOK_1",
"shipping_last_update_date": null,
"batch_id": null,
"batch_created_at": null,
"message": null,
"courier": "SelfShip",
"carrier_id": 23,
"awb_number": null,
"order_status": "Open",
"order_status_id": 2,
"shipping_status": null,
"shipping_status_id": null,
"shipping_history": null,
"payment_mode": "COD",
"payment_mode_id": 2,
"payment_gateway_transaction_number": null,
"payment_gateway_name": null,
"buyer_gst": "NA",
"customer_name": "Test",
"contact_num": "9611624903",
"address_line_1": "HSR",
"address_line_2": null,
"city": "Bangalore",
"pin_code": "590010",
"state": "Karnataka",
"country": "India",
"email": "test@gmail.com",
"latitude": null,
"longitude": null,
"billing_name": "Test",
"billing_address_1": "HSR",
"billing_address_2": null,
"billing_city": "Bangalore",
"billing_state": "Karnataka",
"billing_pin_code": "590010",
"billing_country": "India",
"billing_mobile": "9611624903",
"order_quantity": 1,
"meta": null,
"documents": null,
"total_amount": 11,
"total_tax": 1.6779,
"total_shipping_charge": 1,
"total_discount": 0,
"collectable_amount": 11,
"tcs_rate": 0,
"tcs_amount": 0,
"customer_code": "NA",
"suborders": [
{
"suborder_id": 101198264,
"suborder_num": "76404168537138867409552",
"item_status": "Assigned",
"shipment_type": "SelfShip",
"suborder_quantity": 1,
"item_quantity": 1,
"returned_quantity": 0,
"cancelled_quantity": 0,
"shipped_quantity": 1,
"batch_codes": null,
"serial_nums": "NA",
"batchcode_serial": "NA",
"batchcode_expiry": "NA",
"tax_type": "GST",
"suborder_history": {
"qc_pass_datetime": "2023-05-29 20:13:08",
"confirm_datetime": null,
"print_datetime": null,
"manifest_datetime": null
},
"meta": null,
"selling_price": "11",
"total_shipping_charge": 1,
"total_miscellaneous": null,
"tax_rate": 18,
"tax": 1.6779,
"product_id": 17781814,
"company_product_id": 65142281,
"sku": "AK001",
"sku_type": "Normal",
"sub_product_count": 1,
"marketplace_sku": "AK001",
"productName": "AK001",
"description": "Simple Product 1",
"category": "Bottle",
"brand": "Test",
"model_no": "12345",
"product_tax_code": "12345",
"ean": "987654321",
"size": "10",
"cost": 10,
"mrp": 10,
"weight": 10,
"length": 10,
"width": 10,
"height": 10,
"scheme_applied": 0,
"custom_fields": []
}
]
}
],
"nextUrl": null
}Version-2 (V2):
[
{
"invoice_id": 174404139,
"order_id": 141340837,
"blockSplit": 0,
"reference_code": "Test_create_order_webhook",
"company_name": "testdipak",
"warehouse_id": 59032,
"seller_gst": null,
"assigned_company_name": "testdipak",
"assigned_warehouse_id": 59032,
"assigned_company_gst": null,
"warehouse_contact": null,
"pickup_address": "rtgyu",
"pickup_city": "ftgyhu",
"pickup_state": "Karnataka",
"pickup_state_code": "29",
"pickup_pin_code": "590010",
"pickup_country": "India",
"picker": "NA",
"packer": "NA",
"order_type": "B2C",
"order_type_key": "retailorder",
"replacement_order": 0,
"marketplace": "Offline",
"MarketCId": 123,
"marketplace_id": 10,
"market_shipped": 0,
"merchant_c_id": 123,
"qcPassed": 1,
"salesmanUserId": 0,
"order_date": "2023-09-06 05:30:00",
"tat": "2023-09-07 17:09:26",
"available_after": null,
"invoice_date": "",
"import_date": "2023-09-06 17:09:26",
"last_update_date": "2023-09-06 17:09:28",
"manifest_date": null,
"manifest_no": null,
"invoice_number": null,
"marketplace_invoice_num": "Test_create_order_webhook",
"shipping_last_update_date": null,
"batch_id": null,
"batch_created_at": null,
"message": null,
"courier_aggregator_name": null,
"courier": "SelfShip",
"carrier_id": 23,
"awb_number": null,
"package_weight": 1,
"package_height": 1,
"package_length": 1,
"package_width": 1,
"order_status": "Open",
"order_status_id": 2,
"easyecom_order_history": [
{
"status": "Assigned",
"status_id": 2,
"date_time": "2023-09-06 17:09:27"
}
],
"shipping_status": null,
"shipping_status_id": null,
"tracking_url": null,
"shipping_history": null,
"payment_mode": "COD",
"payment_mode_id": 2,
"payment_gateway_transaction_number": null,
"buyer_gst": "NA",
"customer_name": "test",
"shipping_name": "test",
"contact_num": "9876543212",
"address_line_1": "mumbai",
"address_line_2": null,
"city": "mumbai",
"pin_code": "400067",
"state": "Maharashtra",
"state_code": "27",
"country": "India",
"country_code": 0,
"email": "test@gmail.com",
"latitude": null,
"longitude": null,
"billing_name": "test",
"billing_address_1": "mumbai",
"billing_address_2": null,
"billing_city": "mumbai",
"billing_state": "Maharashtra",
"billing_state_code": "27",
"billing_pin_code": "400067",
"billing_country": "India",
"billing_mobile": "9876543212",
"order_quantity": 5,
"documents": null,
"invoice_documents": null,
"collectable_amount": 790,
"total_amount": 790,
"total_tax": 120.508,
"breakup_types": {
"Item Amount Excluding Tax": 675.4239,
"Shipping Excluding Tax": 16.9491,
"Promotion Discount Excluding Tax": -22.881200000000003,
"Item Amount IGST": 121.5761,
"Shipping IGST": 3.0507999999999997,
"Promotion Discount IGST": -4.118799999999999
},
"tcs_rate": 0,
"tcs_amount": 0,
"customer_code": "NA",
"order_items": [
{
"suborder_id": 216516560,
"suborder_num": "59032169400036663685228",
"invoicecode": null,
"item_collectable_amount": 0,
"shipment_type": "SelfShip",
"suborder_quantity": 2,
"item_quantity": 2,
"returned_quantity": 0,
"cancelled_quantity": 0,
"shipped_quantity": 2,
"tax_type": "GST",
"product_id": 19842860,
"company_product_id": 77827995,
"sku": "Dip1033",
"expiry_type": 0,
"sku_type": "Normal",
"sub_product_count": 1,
"marketplace_sku": "Dip1033",
"listing_ref_number": "-",
"listing_id": "-",
"productName": "Dip1033",
"description": null,
"category": "CC5",
"brand": "Test",
"brand_id": 7070022,
"model_no": "1234567890-",
"product_tax_code": null,
"ean": "NA",
"size": "1",
"cost": 1,
"mrp": 1,
"weight": 1,
"length": 1,
"width": 1,
"height": 1,
"scheme_applied": 0,
"custom_fields": [],
"serials": [
null,
null
],
"tax_rate": 18,
"selling_price": "189.80519480519",
"breakup_types": {
"Item Amount Excluding Tax": 169.4916,
"Shipping Excluding Tax": 4.0722,
"Promotion Discount Excluding Tax": -12.7118,
"Item Amount IGST": 30.5084,
"Shipping IGST": 0.733,
"Promotion Discount IGST": -2.2882
},
"station_scanned_quantity": 0,
"batch_scanned_quantity": 0,
"assigned_quantity": 2
},
{
"suborder_id": 216516569,
"suborder_num": "59032169400036719065368",
"invoicecode": null,
"item_collectable_amount": 0,
"shipment_type": "SelfShip",
"suborder_quantity": 3,
"item_quantity": 3,
"returned_quantity": 0,
"cancelled_quantity": 0,
"shipped_quantity": 3,
"tax_type": "GST",
"product_id": 19842861,
"company_product_id": 77827996,
"sku": "Dip1044",
"sku_type": "Normal",
"sub_product_count": 1,
"marketplace_sku": "Dip1044",
"listing_ref_number": "-",
"listing_id": "-",
"productName": "Dip1044",
"description": null,
"category": "CC5",
"brand": "Test",
"brand_id": 7070022,
"model_no": "1234567890-",
"product_tax_code": null,
"ean": "NA",
"size": "1",
"cost": 1,
"mrp": 1,
"weight": 1,
"length": 1,
"width": 1,
"height": 1,
"scheme_applied": 0,
"custom_fields": [],
"serials": [
null,
null,
null
],
"tax_rate": 18,
"selling_price": "600.19480519481",
"breakup_types": {
"Item Amount Excluding Tax": 505.93230000000005,
"Shipping Excluding Tax": 12.8769,
"Promotion Discount Excluding Tax": -10.1694,
"Item Amount IGST": 91.0677,
"Shipping IGST": 2.3178,
"Promotion Discount IGST": -1.8306
},
"station_scanned_quantity": 0,
"batch_scanned_quantity": 0,
"assigned_quantity": 3
}
],
"location_key": "wo3484777024"
}
]
2) Confirm order:
Once the user confirms any order, it will trigger confirm order action and confirm order data will be posted on the provided URL.
V1:
{
"orders": [
{
"invoice_id": 129074801,
"order_id": 63557056,
"queue_message": null,
"queue_status": 3,
"order_priority": 0,
"blockSplit": 0,
"reference_code": "TEST_WEBHOOK_1",
"company_name": "AkshataTest",
"warehouseId": 76404,
"seller_gst": "",
"import_warehouse_id": 76404,
"import_warehouse_name": "AkshataTest",
"pickup_address": "Shivaji Nagar",
"pickup_city": "Mumbai",
"pickup_state": "Maharashtra",
"pickup_pin_code": "400011",
"pickup_country": "India",
"order_type": "B2C",
"order_type_key": "retailorder",
"replacement_order": 0,
"marketplace": "Offline",
"marketplace_id": 10,
"qcPassed": 1,
"salesmanUserId": 0,
"order_date": "2023-05-29 05:30:00",
"tat": "2023-05-30 20:13:08",
"available_after": null,
"invoice_date": "2023-05-29 00:00:00",
"import_date": "2023-05-29 20:13:08",
"last_update_date": "2023-05-29 20:50:18",
"manifest_date": null,
"manifest_no": null,
"invoice_number": "CMH1-2324-298",
"marketplace_invoice_num": "TEST_WEBHOOK_1",
"shipping_last_update_date": "2023-05-29 20:50:15",
"batch_id": null,
"batch_created_at": null,
"message": null,
"courier": "TEST1",
"carrier_id": 16454,
"awb_number": "1290748017402089",
"order_status": "Confirmed",
"order_status_id": 3,
"shipping_status": "Shipment Created",
"shipping_status_id": 1,
"shipping_history": null,
"payment_mode": "COD",
"payment_mode_id": 2,
"payment_gateway_transaction_number": null,
"payment_gateway_name": null,
"buyer_gst": "NA",
"customer_name": "Test",
"contact_num": "9611624903",
"address_line_1": "HSR",
"address_line_2": null,
"city": "Bangalore",
"pin_code": "590010",
"state": "Karnataka",
"country": "India",
"email": "test@gmail.com",
"latitude": null,
"longitude": null,
"billing_name": "Test",
"billing_address_1": "HSR",
"billing_address_2": null,
"billing_city": "Bangalore",
"billing_state": "Karnataka",
"billing_pin_code": "590010",
"billing_country": "India",
"billing_mobile": "9611624903",
"order_quantity": 1,
"meta": null,
"documents": {
"easyecom_invoice": "https://ee-uploaded-files-oregon.s3.us-west-2.amazonaws.com/Invoice/10/12907480176404.pdf?request-content-type=application/force-download",
"label": "https://ee-uploaded-files-oregon.s3.us-west-2.amazonaws.com/Labels/10/12907480176404.pdf?request-content-type=application/force-download",
"intaxform": null,
"outtaxform": null,
"marketplaceinvoice": null,
"marketplace_tax_invoice": null,
"marketplace_b2c_invoice": null
},
"total_amount": 11,
"total_tax": 1.6779,
"total_shipping_charge": 1,
"total_discount": 0,
"collectable_amount": 11,
"tcs_rate": 0,
"tcs_amount": 0,
"customer_code": "NA",
"suborders": [
{
"suborder_id": 101198264,
"suborder_num": "76404168537138867409552",
"item_status": "Confirmed",
"shipment_type": "SelfShip",
"suborder_quantity": 1,
"item_quantity": 1,
"returned_quantity": 0,
"cancelled_quantity": 0,
"shipped_quantity": 1,
"batch_codes": null,
"serial_nums": "NA",
"batchcode_serial": "NA",
"batchcode_expiry": "NA",
"tax_type": "GST",
"suborder_history": {
"qc_pass_datetime": "2023-05-29 20:13:08",
"confirm_datetime": "2023-05-29 20:49:01",
"print_datetime": null,
"manifest_datetime": null
},
"meta": null,
"selling_price": "11",
"total_shipping_charge": 1,
"total_miscellaneous": null,
"tax_rate": 18,
"tax": 1.6779,
"product_id": 17781814,
"company_product_id": 65142281,
"sku": "AK001",
"sku_type": "Normal",
"sub_product_count": 1,
"marketplace_sku": "AK001",
"productName": "AK001",
"description": "Simple Product 1",
"category": "Bottle",
"brand": "Test",
"model_no": "12345",
"product_tax_code": "12345",
"ean": "987654321",
"size": "10",
"cost": 10,
"mrp": 10,
"weight": 10,
"length": 10,
"width": 10,
"height": 10,
"scheme_applied": 0,
"custom_fields": []
}
]
}
],
"nextUrl": null
}Version-2 (V2):
[
{
"invoice_id": 174404139,
"order_id": 141340837,
"blockSplit": 0,
"reference_code": "Test_create_order_webhook",
"company_name": "testdipak",
"warehouse_id": 59032,
"seller_gst": null,
"assigned_company_name": "testdipak",
"assigned_warehouse_id": 59032,
"assigned_company_gst": null,
"warehouse_contact": null,
"pickup_address": "rtgyu",
"pickup_city": "ftgyhu",
"pickup_state": "Karnataka",
"pickup_state_code": "29",
"pickup_pin_code": "590010",
"pickup_country": "India",
"picker": "NA",
"packer": "NA",
"order_type": "B2C",
"order_type_key": "retailorder",
"replacement_order": 0,
"marketplace": "Offline",
"MarketCId": 123,
"marketplace_id": 10,
"market_shipped": 0,
"merchant_c_id": 123,
"qcPassed": 1,
"salesmanUserId": 0,
"order_date": "2023-09-06 05:30:00",
"tat": "2023-09-07 17:09:26",
"available_after": null,
"invoice_date": "2023-09-06 00:00:00",
"import_date": "2023-09-06 17:09:26",
"last_update_date": "2023-09-06 17:19:47",
"manifest_date": null,
"manifest_no": null,
"invoice_number": "CKA1-2324-4",
"marketplace_invoice_num": "Test_create_order_webhook",
"shipping_last_update_date": "2023-09-06 17:18:56",
"batch_id": null,
"batch_created_at": null,
"message": null,
"courier_aggregator_name": "HandOver",
"courier": "deepak.vr@easyecom.in",
"carrier_id": 28865,
"awb_number": "1744041393619105",
"package_weight": "4",
"package_height": "1",
"package_length": "3",
"package_width": "2",
"order_status": "Confirmed",
"order_status_id": 3,
"easyecom_order_history": [
{
"status": "Assigned",
"status_id": 2,
"date_time": "2023-09-06 17:09:27"
},
{
"status": "Confirm new",
"status_id": 17,
"date_time": "2023-09-06 17:17:47"
},
{
"status": "Confirmed",
"status_id": 3,
"date_time": "2023-09-06 17:17:47"
},
{
"status": "Confirm start",
"status_id": 13,
"date_time": "2023-09-06 17:17:47"
},
{
"status": "Confirm Fail",
"status_id": 18,
"date_time": "2023-09-06 17:17:48"
},
{
"status": "Selfship Confirm",
"status_id": 38,
"date_time": "2023-09-06 17:18:56"
},
{
"status": "Confirm Success",
"status_id": 16,
"date_time": "2023-09-06 17:19:47"
}
],
"shipping_status": "Shipment Created",
"shipping_status_id": 1,
"tracking_url": null,
"shipping_history": null,
"payment_mode": "COD",
"payment_mode_id": 2,
"payment_gateway_transaction_number": null,
"buyer_gst": "NA",
"customer_name": "test",
"shipping_name": "test",
"contact_num": "9876543212",
"address_line_1": "mumbai",
"address_line_2": null,
"city": "mumbai",
"pin_code": "400067",
"state": "Maharashtra",
"state_code": "27",
"country": "India",
"country_code": 0,
"email": "test@gmail.com",
"latitude": null,
"longitude": null,
"billing_name": "test",
"billing_address_1": "mumbai",
"billing_address_2": null,
"billing_city": "mumbai",
"billing_state": "Maharashtra",
"billing_state_code": "27",
"billing_pin_code": "400067",
"billing_country": "India",
"billing_mobile": "9876543212",
"order_quantity": 5,
"documents": {
"easyecom_invoice": "https://ee-uploaded-files-oregon.s3.us-west-2.amazonaws.com/Invoice/10/17440413959032.pdf?request-content-type=application/force-download",
"intaxform": null,
"outtaxform": null,
"marketplaceinvoice": null,
"marketplace_tax_invoice": null,
"marketplace_b2c_invoice": null
},
"invoice_documents": null,
"collectable_amount": 790,
"total_amount": 790,
"total_tax": 120.508,
"breakup_types": {
"Item Amount Excluding Tax": 675.4239,
"Shipping Excluding Tax": 16.949100000000001,
"Promotion Discount Excluding Tax": -22.881200000000003,
"Item Amount IGST": 121.5761,
"Shipping IGST": 3.0507999999999997,
"Promotion Discount IGST": -4.1187999999999994
},
"tcs_rate": 0,
"tcs_amount": 0,
"customer_code": "NA",
"order_items": [
{
"suborder_id": 216516560,
"suborder_num": "59032169400036663685228",
"invoicecode": null,
"item_collectable_amount": 0,
"shipment_type": "SelfShip",
"suborder_quantity": 2,
"item_quantity": 2,
"returned_quantity": 0,
"cancelled_quantity": 0,
"shipped_quantity": 2,
"tax_type": "GST",
"product_id": 19842860,
"company_product_id": 77827995,
"sku": "Dip1033",
"expiry_type": 0,
"sku_type": "Normal",
"sub_product_count": 1,
"marketplace_sku": "Dip1033",
"listing_ref_number": "-",
"listing_id": "-",
"productName": "Dip1033",
"description": null,
"category": "CC5",
"brand": "Test",
"brand_id": 7070022,
"model_no": "1234567890-",
"product_tax_code": null,
"ean": "NA",
"size": "1",
"cost": 1,
"mrp": 1,
"weight": 1,
"length": 1,
"width": 1,
"height": 1,
"scheme_applied": 0,
"custom_fields": [],
"serials": [
null,
null
],
"tax_rate": 18,
"selling_price": "189.80519480519",
"breakup_types": {
"Item Amount Excluding Tax": 169.49160000000001,
"Shipping Excluding Tax": 4.0721999999999996,
"Promotion Discount Excluding Tax": -12.7118,
"Item Amount IGST": 30.508400000000002,
"Shipping IGST": 0.73299999999999998,
"Promotion Discount IGST": -2.2881999999999998
},
"station_scanned_quantity": 0,
"batch_scanned_quantity": 0,
"assigned_quantity": 2
},
{
"suborder_id": 216516569,
"suborder_num": "59032169400036719065368",
"invoicecode": null,
"item_collectable_amount": 0,
"shipment_type": "SelfShip",
"suborder_quantity": 3,
"item_quantity": 3,
"returned_quantity": 0,
"cancelled_quantity": 0,
"shipped_quantity": 3,
"tax_type": "GST",
"product_id": 19842861,
"company_product_id": 77827996,
"sku": "Dip1044",
"sku_type": "Normal",
"sub_product_count": 1,
"marketplace_sku": "Dip1044",
"listing_ref_number": "-",
"listing_id": "-",
"productName": "Dip1044",
"description": null,
"category": "CC5",
"brand": "Test",
"brand_id": 7070022,
"model_no": "1234567890-",
"product_tax_code": null,
"ean": "NA",
"size": "1",
"cost": 1,
"mrp": 1,
"weight": 1,
"length": 1,
"width": 1,
"height": 1,
"scheme_applied": 0,
"custom_fields": [],
"serials": [
null,
null,
null
],
"tax_rate": 18,
"selling_price": "600.19480519481",
"breakup_types": {
"Item Amount Excluding Tax": 505.93230000000005,
"Shipping Excluding Tax": 12.876899999999999,
"Promotion Discount Excluding Tax": -10.1694,
"Item Amount IGST": 91.067700000000002,
"Shipping IGST": 2.3178000000000001,
"Promotion Discount IGST": -1.8306
},
"station_scanned_quantity": 0,
"batch_scanned_quantity": 0,
"assigned_quantity": 3
}
],
"location_key": "wo3484777024"
}
]
3) Update Inventory:
If the inventory changes for a particular SKU, it will trigger the update Inventory action, and inventory data will be posted on the provided URL.
V1:
{
"inventoryData": [
{
"company_product_id": 65142210,
"product_id": 17781792,
"inventory": 897,
"sku": "A001",
"warehouse_id": 76404,
"location_key": "ur5837571216",
"sku_status": "Active" } ] }
4) Manifested:
Whenever the manifest is added and created for the products, it will trigger the manifest action and shipping details will be posted on the provided URL.
V1:
{
"orders": [
{
"invoice_id": 129075278,
"order_id": 63557079,
"queue_message": null,
"queue_status": 3,
"order_priority": 0,
"blockSplit": 0,
"reference_code": "TEST_WEBHOOK345",
"company_name": "AkshataTest",
"warehouseId": 76404,
"seller_gst": "",
"import_warehouse_id": 76404,
"import_warehouse_name": "AkshataTest",
"pickup_address": "Shivaji Nagar",
"pickup_city": "Mumbai",
"pickup_state": "Maharashtra",
"pickup_pin_code": "400011",
"pickup_country": "India",
"order_type": "B2C",
"order_type_key": "retailorder",
"replacement_order": 0,
"marketplace": "Offline",
"marketplace_id": 10,
"qcPassed": 1,
"salesmanUserId": 0,
"order_date": "2023-05-30 05:30:00",
"tat": "2023-05-31 13:13:34",
"available_after": null,
"invoice_date": "2023-05-30 00:00:00",
"import_date": "2023-05-30 13:13:34",
"last_update_date": "2023-05-30 14:22:50",
"manifest_date": "2023-05-30 14:23:07",
"manifest_no": "20230530022307_10_16454_938",
"invoice_number": "CMH1-2324-305",
"marketplace_invoice_num": "TEST_WEBHOOK345",
"shipping_last_update_date": "2023-05-30 14:23:07",
"batch_id": null,
"batch_created_at": null,
"message": null,
"courier": "TEST1",
"carrier_id": 16454,
"awb_number": "1290752782656091",
"order_status": "Shipped",
"order_status_id": 7,
"shipping_status": "Shipment Created",
"shipping_status_id": 1,
"shipping_history": null,
"payment_mode": "COD",
"payment_mode_id": 2,
"payment_gateway_transaction_number": null,
"payment_gateway_name": null,
"buyer_gst": "NA",
"customer_name": "Test",
"contact_num": "9611624902",
"address_line_1": "HSR",
"address_line_2": null,
"city": "Bangalore",
"pin_code": "590012",
"state": "Karnataka",
"country": "India",
"email": "test@gmail.com",
"latitude": null,
"longitude": null,
"billing_name": "Test",
"billing_address_1": "HSR",
"billing_address_2": null,
"billing_city": "Bangalore",
"billing_state": "Karnataka",
"billing_pin_code": "590012",
"billing_country": "India",
"billing_mobile": "9611624902",
"order_quantity": 5,
"meta": null,
"documents": {
"easyecom_invoice": "https://ee-uploaded-files-oregon.s3.us-west-2.amazonaws.com/Invoice/10/12907527876404.pdf?request-content-type=application/force-download",
"label": "https://ee-uploaded-files-oregon.s3.us-west-2.amazonaws.com/Labels/10/12907527876404.pdf?request-content-type=application/force-download",
"intaxform": null,
"outtaxform": null,
"marketplaceinvoice": null,
"marketplace_tax_invoice": null,
"marketplace_b2c_invoice": null
},
"total_amount": 0,
"total_tax": 0,
"total_shipping_charge": 0,
"total_discount": 0,
"collectable_amount": 0,
"tcs_rate": 0,
"tcs_amount": 0,
"customer_code": "NA",
"suborders": [
{
"suborder_id": 101198301,
"suborder_num": "76404168543261498131362",
"item_status": "Shipped",
"shipment_type": "SelfShip",
"suborder_quantity": 5,
"item_quantity": 5,
"returned_quantity": 0,
"cancelled_quantity": 0,
"shipped_quantity": 5,
"batch_codes": null,
"serial_nums": "NA",
"batchcode_serial": "NA",
"batchcode_expiry": "NA",
"tax_type": "GST",
"suborder_history": {
"qc_pass_datetime": "2023-05-30 13:13:34",
"confirm_datetime": "2023-05-30 14:17:49",
"print_datetime": "2023-05-30 14:20:56",
"manifest_datetime": "2023-05-30 14:23:07"
},
"meta": null,
"selling_price": null,
"total_shipping_charge": null,
"total_miscellaneous": null,
"tax_rate": 18,
"tax": 0,
"product_id": 18041624,
"company_product_id": 74524394,
"sku": "COM1",
"sku_type": "Combo",
"sub_product_count": 1,
"marketplace_sku": "COM1",
"productName": "COM1",
"description": "COM1",
"category": "Mobile",
"brand": "Test",
"model_no": "COM1",
"product_tax_code": null,
"ean": "765434567",
"size": "1",
"cost": 100,
"mrp": 100,
"weight": 100,
"length": 1,
"width": 1,
"height": 1,
"scheme_applied": 0,
"custom_fields": []
}
]
}
],
"nextUrl": null
}Version-2 (V2):
[
{
"invoice_id": 174404139,
"order_id": 141340837,
"blockSplit": 0,
"reference_code": "Test_create_order_webhook",
"company_name": "testdipak",
"warehouse_id": 59032,
"seller_gst": null,
"assigned_company_name": "testdipak",
"assigned_warehouse_id": 59032,
"assigned_company_gst": null,
"warehouse_contact": null,
"pickup_address": "rtgyu",
"pickup_city": "ftgyhu",
"pickup_state": "Karnataka",
"pickup_state_code": "29",
"pickup_pin_code": "590010",
"pickup_country": "India",
"picker": "NA",
"packer": "testdipak@gmail.com",
"order_type": "B2C",
"order_type_key": "retailorder",
"replacement_order": 0,
"marketplace": "Offline",
"MarketCId": 123,
"marketplace_id": 10,
"market_shipped": 0,
"merchant_c_id": 123,
"qcPassed": 1,
"salesmanUserId": 0,
"order_date": "2023-09-06 05:30:00",
"tat": "2023-09-07 17:09:26",
"available_after": null,
"invoice_date": "2023-09-06 00:00:00",
"import_date": "2023-09-06 17:09:26",
"last_update_date": "2023-09-06 17:20:57",
"manifest_date": "2023-09-06 17:21:14",
"manifest_no": "20230906052113_10_28865_851",
"invoice_number": "CKA1-2324-4",
"marketplace_invoice_num": "Test_create_order_webhook",
"shipping_last_update_date": "2023-09-06 17:21:14",
"batch_id": null,
"batch_created_at": null,
"message": null,
"courier_aggregator_name": "HandOver",
"courier": "deepak.vr@easyecom.in",
"carrier_id": 28865,
"awb_number": "1744041393619105",
"package_weight": "4",
"package_height": "1",
"package_length": "3",
"package_width": "2",
"order_status": "Shipped",
"order_status_id": 7,
"easyecom_order_history": [
{
"status": "Assigned",
"status_id": 2,
"date_time": "2023-09-06 17:09:27"
},
{
"status": "Confirm new",
"status_id": 17,
"date_time": "2023-09-06 17:17:47"
},
{
"status": "Confirmed",
"status_id": 3,
"date_time": "2023-09-06 17:17:47"
},
{
"status": "Confirm start",
"status_id": 13,
"date_time": "2023-09-06 17:17:47"
},
{
"status": "Confirm Fail",
"status_id": 18,
"date_time": "2023-09-06 17:17:48"
},
{
"status": "Selfship Confirm",
"status_id": 38,
"date_time": "2023-09-06 17:18:56"
},
{
"status": "Confirm Success",
"status_id": 16,
"date_time": "2023-09-06 17:19:47"
},
{
"status": "Printed",
"status_id": 5,
"date_time": "2023-09-06 17:20:50"
},
{
"status": "Ready to dispatch",
"status_id": 6,
"date_time": "2023-09-06 17:20:57"
},
{
"status": "Shipped",
"status_id": 7,
"date_time": "2023-09-06 17:21:14"
}
],
"shipping_status": "Shipment Created",
"shipping_status_id": 1,
"tracking_url": null,
"shipping_history": null,
"payment_mode": "COD",
"payment_mode_id": 2,
"payment_gateway_transaction_number": null,
"buyer_gst": "NA",
"customer_name": "test",
"shipping_name": "test",
"contact_num": "9876543212",
"address_line_1": "mumbai",
"address_line_2": null,
"city": "mumbai",
"pin_code": "400067",
"state": "Maharashtra",
"state_code": "27",
"country": "India",
"country_code": 0,
"email": "test@gmail.com",
"latitude": null,
"longitude": null,
"billing_name": "test",
"billing_address_1": "mumbai",
"billing_address_2": null,
"billing_city": "mumbai",
"billing_state": "Maharashtra",
"billing_state_code": "27",
"billing_pin_code": "400067",
"billing_country": "India",
"billing_mobile": "9876543212",
"order_quantity": 5,
"documents": {
"easyecom_invoice": "https://ee-uploaded-files-oregon.s3.us-west-2.amazonaws.com/Invoice/10/17440413959032.pdf?request-content-type=application/force-download",
"label": "https://ee-uploaded-files-oregon.s3.us-west-2.amazonaws.com/Labels/10/17440413959032.pdf?request-content-type=application/force-download",
"intaxform": null,
"outtaxform": null,
"marketplaceinvoice": null,
"marketplace_tax_invoice": null,
"marketplace_b2c_invoice": null
},
"invoice_documents": null,
"collectable_amount": 790,
"total_amount": 790,
"total_tax": 120.508,
"breakup_types": {
"Item Amount Excluding Tax": 675.4239,
"Shipping Excluding Tax": 16.949100000000001,
"Promotion Discount Excluding Tax": -22.881200000000003,
"Item Amount IGST": 121.5761,
"Shipping IGST": 3.0507999999999997,
"Promotion Discount IGST": -4.1187999999999994
},
"tcs_rate": 0,
"tcs_amount": 0,
"customer_code": "NA",
"order_items": [
{
"suborder_id": 216516560,
"suborder_num": "59032169400036663685228",
"invoicecode": null,
"item_collectable_amount": 0,
"shipment_type": "SelfShip",
"suborder_quantity": 2,
"item_quantity": 2,
"returned_quantity": 0,
"cancelled_quantity": 0,
"shipped_quantity": 2,
"tax_type": "GST",
"product_id": 19842860,
"company_product_id": 77827995,
"sku": "Dip1033",
"expiry_type": 0,
"sku_type": "Normal",
"sub_product_count": 1,
"marketplace_sku": "Dip1033",
"listing_ref_number": "-",
"listing_id": "-",
"productName": "Dip1033",
"description": null,
"category": "CC5",
"brand": "Test",
"brand_id": 7070022,
"model_no": "1234567890-",
"product_tax_code": null,
"ean": "NA",
"size": "1",
"cost": 1,
"mrp": 1,
"weight": 1,
"length": 1,
"width": 1,
"height": 1,
"scheme_applied": 0,
"custom_fields": [],
"serials": [
null,
null
],
"tax_rate": 18,
"selling_price": "189.80519480519",
"breakup_types": {
"Item Amount Excluding Tax": 169.49160000000001,
"Shipping Excluding Tax": 4.0721999999999996,
"Promotion Discount Excluding Tax": -12.7118,
"Item Amount IGST": 30.508400000000002,
"Shipping IGST": 0.73299999999999998,
"Promotion Discount IGST": -2.2881999999999998
},
"station_scanned_quantity": 0,
"batch_scanned_quantity": 0,
"assigned_quantity": 2
},
{
"suborder_id": 216516569,
"suborder_num": "59032169400036719065368",
"invoicecode": null,
"item_collectable_amount": 0,
"shipment_type": "SelfShip",
"suborder_quantity": 3,
"item_quantity": 3,
"returned_quantity": 0,
"cancelled_quantity": 0,
"shipped_quantity": 3,
"tax_type": "GST",
"product_id": 19842861,
"company_product_id": 77827996,
"sku": "Dip1044",
"sku_type": "Normal",
"sub_product_count": 1,
"marketplace_sku": "Dip1044",
"listing_ref_number": "-",
"listing_id": "-",
"productName": "Dip1044",
"description": null,
"category": "CC5",
"brand": "Test",
"brand_id": 7070022,
"model_no": "1234567890-",
"product_tax_code": null,
"ean": "NA",
"size": "1",
"cost": 1,
"mrp": 1,
"weight": 1,
"length": 1,
"width": 1,
"height": 1,
"scheme_applied": 0,
"custom_fields": [],
"serials": [
null,
null,
null
],
"tax_rate": 18,
"selling_price": "600.19480519481",
"breakup_types": {
"Item Amount Excluding Tax": 505.93230000000005,
"Shipping Excluding Tax": 12.876899999999999,
"Promotion Discount Excluding Tax": -10.1694,
"Item Amount IGST": 91.067700000000002,
"Shipping IGST": 2.3178000000000001,
"Promotion Discount IGST": -1.8306
},
"station_scanned_quantity": 0,
"batch_scanned_quantity": 0,
"assigned_quantity": 3
}
],
"location_key": "wo3484777024"
}
]
5) Mark return:
If the user marks return on any product, it will trigger the Mark return action, and mark return data will be posted on the provided URL.
Version-1 (V1):
{
"credit_notes": [
{
"credit_note_id": 9995488,
"invoice_id": 174404139,
"order_id": 141340837,
"reference_code": "Test_create_order_webhook",
"company_name": "testdipak",
"location_key": "wo3484777024",
"warehouseId": 59032,
"seller_gst": null,
"forward_shipment_pickup_address": "rtgyu",
"forward_shipment_pickup_city": "ftgyhu",
"forward_shipment_pickup_state": "Karnataka",
"forward_shipment_pickup_state_code": "29",
"forward_shipment_pickup_pin_code": "590010",
"forward_shipment_pickup_country": "India",
"order_type": "B2C",
"order_type_key": "retailorder",
"replacement_order": 0,
"marketplace": "Offline",
"marketplace_id": 10,
"salesmanUserId": 0,
"order_date": "2023-09-06 05:30:00",
"invoice_date": "2023-09-06 00:00:00",
"import_date": "2023-09-06 17:09:26",
"last_update_date": "2023-09-06 17:20:57",
"manifest_date": "2023-09-06 17:21:14",
"credit_note_date": "2023-09-06 00:00:00",
"return_date": "2023-09-06",
"manifest_no": "20230906052113_10_28865_851",
"invoice_number": "CKA1-2324-4",
"credit_note_number": "RCKA1-2324-1",
"marketplace_credit_note_num": null,
"marketplace_invoice_num": "Test_create_order_webhook",
"batch_id": null,
"batch_created_at": null,
"payment_mode": "COD",
"payment_mode_id": 2,
"credit_note_documents": null,
"credit_note_amount": 789.99990000000003,
"credit_note_tax_amount": 120.5081,
"return_awb_number": null,
"return_type": null,
"buyer_gst": "NA",
"forward_shipment_customer_name": "test",
"forward_shipment_customer_contact_num": "9876543212",
"forward_shipment_customer_address_line_1": "mumbai",
"forward_shipment_customer_address_line_2": null,
"forward_shipment_customer_city": "mumbai",
"forward_shipment_customer_pin_code": "400067",
"forward_shipment_customer_state": "Maharashtra",
"forward_shipment_customer_state_code": "27",
"forward_shipment_customer_country": "India",
"forward_shipment_customer_email": "test@gmail.com",
"forward_shipment_billing_name": "test",
"forward_shipment_billing_address_1": "mumbai",
"forward_shipment_billing_address_2": null,
"forward_shipment_billing_city": "mumbai",
"forward_shipment_billing_state": "Maharashtra",
"forward_shipment_billing_state_code": "27",
"forward_shipment_billing_pin_code": "400067",
"forward_shipment_billing_country": "India",
"forward_shipment_billing_mobile": "9876543212",
"order_quantity": 5,
"total_invoice_amount": 790,
"total_invoice_tax": 120.508,
"invoice_collectable_amount": 790,
"items": [
{
"company_product_id": 77827995,
"product_id": 19842860,
"suborder_id": 216516560,
"suborder_num": "59032169400036663685228",
"return_reason": "Not delivered - Unknown",
"inventory_status": "QC Pass",
"shipment_type": "SelfShip",
"suborder_quantity": 2,
"returned_item_quantity": 2,
"tax_type": "GST",
"total_item_selling_price": "189.80519480519",
"credit_note_total_item_shipping_charge": 4.8051996231079102,
"credit_note_total_item_miscellaneous": -15,
"item_tax_rate": 18,
"credit_note_total_item_tax": 28.953199999999999,
"credit_note_total_item_excluding_tax": 160.852,
"sku": "Dip1033",
"productName": "Dip1033",
"description": null,
"category": "CC5",
"brand": "Test",
"model_no": "1234567890-",
"product_tax_code": null,
"ean": "NA",
"size": "1",
"cost": 1,
"mrp": 1,
"weight": 1,
"length": 1,
"width": 1,
"height": 1,
"item_type": "simple_product",
"parent_sku": null
},
{
"company_product_id": 77827996,
"product_id": 19842861,
"suborder_id": 216516569,
"suborder_num": "59032169400036719065368",
"return_reason": "Not delivered - Unknown",
"inventory_status": "QC Pass",
"shipment_type": "SelfShip",
"suborder_quantity": 3,
"returned_item_quantity": 3,
"tax_type": "GST",
"total_item_selling_price": "600.19480519481",
"credit_note_total_item_shipping_charge": 15.194701194763184,
"credit_note_total_item_miscellaneous": -12,
"item_tax_rate": 18,
"credit_note_total_item_tax": 91.554900000000004,
"credit_note_total_item_excluding_tax": 508.63979999999998,
"sku": "Dip1044",
"productName": "Dip1044",
"description": null,
"category": "CC5",
"brand": "Test",
"model_no": "1234567890-",
"product_tax_code": null,
"ean": "NA",
"size": "1",
"cost": 1,
"mrp": 1,
"weight": 1,
"length": 1,
"width": 1,
"height": 1,
"item_type": "simple_product",
"parent_sku": null
}
]
}
],
"nextUrl": null
}
6) GRN Details:
As soon as the user acknowledges the goods received, it will trigger the GRN details and the data will be posted on the provided URL.
V1:
{
"buyerCompanyName": "AkshataTest",
"buyerCity": "Mumbai",
"buyerCountry": "India",
"buyerStreet": "Shivaji Nagar",
"buyerPincode": "400011",
"buyerState": "Maharashtra",
"vendorCode": null,
"vendorName": "AkshataTest",
"vendor_gstn": "",
"vendorCity": "Mumbai",
"vendorCountry": "India",
"vendorStreet": "Shivaji Nagar",
"vendorPincode": "400011",
"vendorState": "Maharashtra",
"grnId": 161429,
"grnInvoiceNumber": "AutoGrn",
"grnInvoiceDate": "2023-05-30",
"grnCreatedAt": "2023-05-30 10:23:36",
"grnStatus": "Completed",
"poRefNum": "Auto PO",
"grnPrice": 10,
"poNumber": 359993,
"poStatus": "Completed",
"poCreateDate": "2023-05-30 10:23:36",
"sku": "AK001",
"received_quantity": 1000,
"poQuantity": 1000,
"product_unique_code": "987654321",
"mrp": 10,
"batchCode": null,
"totalGrn": 10000,
"currentGrnItemdate": "2023-05-30 10:23:36",
"lineItemNo": null
}7) Complete GRN:
The user enters the quantity, verifies it and confirms the quantity that was received. Once GRN is completed, it will trigger “GRN data” and data will be posted on the provided URL.
V1:
{
"buyerCompanyName": "AkshataTest",
"buyerCity": "Mumbai",
"buyerCountry": "India",
"buyerStreet": "Shivaji Nagar",
"buyerPincode": "400011",
"buyerState": "Maharashtra",
"vendorCode": null,
"vendorName": "AkshataTest",
"vendor_gstn": "",
"vendorCity": "Mumbai",
"vendorCountry": "India",
"vendorStreet": "Shivaji Nagar",
"vendorPincode": "400011",
"vendorState": "Maharashtra",
"grnId": 161430,
"grnInvoiceNumber": null,
"grnInvoiceDate": null,
"grnCreatedAt": "2023-05-30 10:27:55",
"grnStatus": "Completed",
"poRefNum": "",
"poNumber": 359994,
"poStatus": "Approved",
"poCreateDate": "2023-05-30 10:27:26",
"poOrderId": null,
"items": [
{
"sku": "AK001",
"lineItemNo": null,
"cpId": 65142281,
"mrp": 10,
"accounting_sku": null,
"vendor_sku": null,
"accounting_unit": null,
"product_unique_code": "987654321",
"description": "Simple Product 1",
"product_name": "AK001",
"received_quantity": 10,
"poQuantity": "100",
"poItemPrice": 8.4746,
"grnPrice": 10,
"colour": "Black",
"size": "10",
"CGST": 0.7627,
"SGST": 0.7627,
"IGST": 0,
"TAX": 1.5254,
"tax_percentage": 18,
"totalTaxableValue": 84.746,
"grnTotalValue": 100,
"totalTaxValue": 15.254,
"totalCGSTValue": 7.627,
"totalSGSTValue": 7.627,
"totalIGSTValue": 0
}
]
}8) RTD:
V1:
{
"orders": [
{
"invoice_id": 129075278,
"order_id": 63557079,
"queue_message": null,
"queue_status": 3,
"order_priority": 0,
"blockSplit": 0,
"reference_code": "TEST_WEBHOOK345",
"company_name": "AkshataTest",
"warehouseId": 76404,
"seller_gst": "",
"import_warehouse_id": 76404,
"import_warehouse_name": "AkshataTest",
"pickup_address": "Shivaji Nagar",
"pickup_city": "Mumbai",
"pickup_state": "Maharashtra",
"pickup_pin_code": "400011",
"pickup_country": "India",
"order_type": "B2C",
"order_type_key": "retailorder",
"replacement_order": 0,
"marketplace": "Offline",
"marketplace_id": 10,
"qcPassed": 1,
"salesmanUserId": 0,
"order_date": "2023-05-30 05:30:00",
"tat": "2023-05-31 13:13:34",
"available_after": null,
"invoice_date": "2023-05-30 00:00:00",
"import_date": "2023-05-30 13:13:34",
"last_update_date": "2023-05-30 14:20:54",
"manifest_date": null,
"manifest_no": null,
"invoice_number": "CMH1-2324-305",
"marketplace_invoice_num": "TEST_WEBHOOK345",
"shipping_last_update_date": "2023-05-30 14:18:38",
"batch_id": null,
"batch_created_at": null,
"message": null,
"courier": "TEST1",
"carrier_id": 16454,
"awb_number": "1290752782656091",
"order_status": "Printed",
"order_status_id": 5,
"shipping_status": "Shipment Created",
"shipping_status_id": 1,
"shipping_history": null,
"payment_mode": "COD",
"payment_mode_id": 2,
"payment_gateway_transaction_number": null,
"payment_gateway_name": null,
"buyer_gst": "NA",
"customer_name": "Test",
"contact_num": "9611624902",
"address_line_1": "HSR",
"address_line_2": null,
"city": "Bangalore",
"pin_code": "590012",
"state": "Karnataka",
"country": "India",
"email": "test@gmail.com",
"latitude": null,
"longitude": null,
"billing_name": "Test",
"billing_address_1": "HSR",
"billing_address_2": null,
"billing_city": "Bangalore",
"billing_state": "Karnataka",
"billing_pin_code": "590012",
"billing_country": "India",
"billing_mobile": "9611624902",
"order_quantity": 5,
"meta": null,
"documents": {
"easyecom_invoice": "https://ee-uploaded-files-oregon.s3.us-west-2.amazonaws.com/Invoice/10/12907527876404.pdf?request-content-type=application/force-download",
"label": "https://ee-uploaded-files-oregon.s3.us-west-2.amazonaws.com/Labels/10/12907527876404.pdf?request-content-type=application/force-download",
"intaxform": null,
"outtaxform": null,
"marketplaceinvoice": null,
"marketplace_tax_invoice": null,
"marketplace_b2c_invoice": null
},
"total_amount": 0,
"total_tax": 0,
"total_shipping_charge": 0,
"total_discount": 0,
"collectable_amount": 0,
"tcs_rate": 0,
"tcs_amount": 0,
"customer_code": "NA",
"suborders": [
{
"suborder_id": 101198301,
"suborder_num": "76404168543261498131362",
"item_status": "Printed",
"shipment_type": "SelfShip",
"suborder_quantity": 5,
"item_quantity": 5,
"returned_quantity": 0,
"cancelled_quantity": 0,
"shipped_quantity": 5,
"batch_codes": null,
"serial_nums": "NA",
"batchcode_serial": "NA",
"batchcode_expiry": "NA",
"tax_type": "GST",
"suborder_history": {
"qc_pass_datetime": "2023-05-30 13:13:34",
"confirm_datetime": "2023-05-30 14:17:49",
"print_datetime": "2023-05-30 14:20:56",
"manifest_datetime": null
},
"meta": null,
"selling_price": null,
"total_shipping_charge": null,
"total_miscellaneous": null,
"tax_rate": 18,
"tax": 0,
"product_id": 18041624,
"company_product_id": 74524394,
"sku": "COM1",
"sku_type": "Combo",
"sub_product_count": 1,
"marketplace_sku": "COM1",
"productName": "COM1",
"description": "COM1",
"category": "Mobile",
"brand": "Test",
"model_no": "COM1",
"product_tax_code": null,
"ean": "765434567",
"size": "1",
"cost": 100,
"mrp": 100,
"weight": 100,
"length": 1,
"width": 1,
"height": 1,
"scheme_applied": 0,
"custom_fields": []
}
]
}
],
"nextUrl": null
}Version-2 (V2):
[
{
"invoice_id": 174404139,
"order_id": 141340837,
"blockSplit": 0,
"reference_code": "Test_create_order_webhook",
"company_name": "testdipak",
"warehouse_id": 59032,
"seller_gst": null,
"assigned_company_name": "testdipak",
"assigned_warehouse_id": 59032,
"assigned_company_gst": null,
"warehouse_contact": null,
"pickup_address": "rtgyu",
"pickup_city": "ftgyhu",
"pickup_state": "Karnataka",
"pickup_state_code": "29",
"pickup_pin_code": "590010",
"pickup_country": "India",
"picker": "NA",
"packer": "testdipak@gmail.com",
"order_type": "B2C",
"order_type_key": "retailorder",
"replacement_order": 0,
"marketplace": "Offline",
"MarketCId": 123,
"marketplace_id": 10,
"market_shipped": 0,
"merchant_c_id": 123,
"qcPassed": 1,
"salesmanUserId": 0,
"order_date": "2023-09-06 05:30:00",
"tat": "2023-09-07 17:09:26",
"available_after": null,
"invoice_date": "2023-09-06 00:00:00",
"import_date": "2023-09-06 17:09:26",
"last_update_date": "2023-09-06 17:20:49",
"manifest_date": null,
"manifest_no": null,
"invoice_number": "CKA1-2324-4",
"marketplace_invoice_num": "Test_create_order_webhook",
"shipping_last_update_date": "2023-09-06 17:18:56",
"batch_id": null,
"batch_created_at": null,
"message": null,
"courier_aggregator_name": "HandOver",
"courier": "deepak.vr@easyecom.in",
"carrier_id": 28865,
"awb_number": "1744041393619105",
"package_weight": "4",
"package_height": "1",
"package_length": "3",
"package_width": "2",
"order_status": "Printed",
"order_status_id": 5,
"easyecom_order_history": [
{
"status": "Assigned",
"status_id": 2,
"date_time": "2023-09-06 17:09:27"
},
{
"status": "Confirm new",
"status_id": 17,
"date_time": "2023-09-06 17:17:47"
},
{
"status": "Confirmed",
"status_id": 3,
"date_time": "2023-09-06 17:17:47"
},
{
"status": "Confirm start",
"status_id": 13,
"date_time": "2023-09-06 17:17:47"
},
{
"status": "Confirm Fail",
"status_id": 18,
"date_time": "2023-09-06 17:17:48"
},
{
"status": "Selfship Confirm",
"status_id": 38,
"date_time": "2023-09-06 17:18:56"
},
{
"status": "Confirm Success",
"status_id": 16,
"date_time": "2023-09-06 17:19:47"
},
{
"status": "Printed",
"status_id": 5,
"date_time": "2023-09-06 17:20:50"
}
],
"shipping_status": "Shipment Created",
"shipping_status_id": 1,
"tracking_url": null,
"shipping_history": null,
"payment_mode": "COD",
"payment_mode_id": 2,
"payment_gateway_transaction_number": null,
"buyer_gst": "NA",
"customer_name": "test",
"shipping_name": "test",
"contact_num": "9876543212",
"address_line_1": "mumbai",
"address_line_2": null,
"city": "mumbai",
"pin_code": "400067",
"state": "Maharashtra",
"state_code": "27",
"country": "India",
"country_code": 0,
"email": "test@gmail.com",
"latitude": null,
"longitude": null,
"billing_name": "test",
"billing_address_1": "mumbai",
"billing_address_2": null,
"billing_city": "mumbai",
"billing_state": "Maharashtra",
"billing_state_code": "27",
"billing_pin_code": "400067",
"billing_country": "India",
"billing_mobile": "9876543212",
"order_quantity": 5,
"documents": {
"easyecom_invoice": "https://ee-uploaded-files-oregon.s3.us-west-2.amazonaws.com/Invoice/10/17440413959032.pdf?request-content-type=application/force-download",
"intaxform": null,
"outtaxform": null,
"marketplaceinvoice": null,
"marketplace_tax_invoice": null,
"marketplace_b2c_invoice": null
},
"invoice_documents": null,
"collectable_amount": 790,
"total_amount": 790,
"total_tax": 120.508,
"breakup_types": {
"Item Amount Excluding Tax": 675.4239,
"Shipping Excluding Tax": 16.9491,
"Promotion Discount Excluding Tax": -22.881200000000003,
"Item Amount IGST": 121.5761,
"Shipping IGST": 3.0507999999999997,
"Promotion Discount IGST": -4.118799999999999
},
"tcs_rate": 0,
"tcs_amount": 0,
"customer_code": "NA",
"order_items": [
{
"suborder_id": 216516560,
"suborder_num": "59032169400036663685228",
"invoicecode": null,
"item_collectable_amount": 0,
"shipment_type": "SelfShip",
"suborder_quantity": 2,
"item_quantity": 2,
"returned_quantity": 0,
"cancelled_quantity": 0,
"shipped_quantity": 2,
"tax_type": "GST",
"product_id": 19842860,
"company_product_id": 77827995,
"sku": "Dip1033",
"expiry_type": 0,
"sku_type": "Normal",
"sub_product_count": 1,
"marketplace_sku": "Dip1033",
"listing_ref_number": "-",
"listing_id": "-",
"productName": "Dip1033",
"description": null,
"category": "CC5",
"brand": "Test",
"brand_id": 7070022,
"model_no": "1234567890-",
"product_tax_code": null,
"ean": "NA",
"size": "1",
"cost": 1,
"mrp": 1,
"weight": 1,
"length": 1,
"width": 1,
"height": 1,
"scheme_applied": 0,
"custom_fields": [],
"serials": [
null,
null
],
"tax_rate": 18,
"selling_price": "189.80519480519",
"breakup_types": {
"Item Amount Excluding Tax": 169.4916,
"Shipping Excluding Tax": 4.0722,
"Promotion Discount Excluding Tax": -12.7118,
"Item Amount IGST": 30.5084,
"Shipping IGST": 0.733,
"Promotion Discount IGST": -2.2882
},
"station_scanned_quantity": 0,
"batch_scanned_quantity": 0,
"assigned_quantity": 2
},
{
"suborder_id": 216516569,
"suborder_num": "59032169400036719065368",
"invoicecode": null,
"item_collectable_amount": 0,
"shipment_type": "SelfShip",
"suborder_quantity": 3,
"item_quantity": 3,
"returned_quantity": 0,
"cancelled_quantity": 0,
"shipped_quantity": 3,
"tax_type": "GST",
"product_id": 19842861,
"company_product_id": 77827996,
"sku": "Dip1044",
"sku_type": "Normal",
"sub_product_count": 1,
"marketplace_sku": "Dip1044",
"listing_ref_number": "-",
"listing_id": "-",
"productName": "Dip1044",
"description": null,
"category": "CC5",
"brand": "Test",
"brand_id": 7070022,
"model_no": "1234567890-",
"product_tax_code": null,
"ean": "NA",
"size": "1",
"cost": 1,
"mrp": 1,
"weight": 1,
"length": 1,
"width": 1,
"height": 1,
"scheme_applied": 0,
"custom_fields": [],
"serials": [
null,
null,
null
],
"tax_rate": 18,
"selling_price": "600.19480519481",
"breakup_types": {
"Item Amount Excluding Tax": 505.93230000000005,
"Shipping Excluding Tax": 12.8769,
"Promotion Discount Excluding Tax": -10.1694,
"Item Amount IGST": 91.0677,
"Shipping IGST": 2.3178,
"Promotion Discount IGST": -1.8306
},
"station_scanned_quantity": 0,
"batch_scanned_quantity": 0,
"assigned_quantity": 3
}
],
"location_key": "wo3484777024"
}
]
9) Tracking:
V1:
[
{
"last_status_update": "2023-05-23 16:54:05",
"suborder_id": 101136575,
"master_carrier_id": 7475,
"tier": null,
"carrier_id": 16454,
"status_id": 7,
"shipping_status_id": 18,
"reference_code": "TEST_SUBORDER",
"awbNumber": "871839529806095",
"invoiceId": 87183952,
"orderId": 63505113,
"invoiceAmount": 10,
"tax": 1.5256,
"shippingHistory": null,
"currentShippingStatus": "Pickup Scheduled",
"expectedDeliveryDate": "2023-05-29 00:00:00",
"carrierName": "TEST1",
"orderDate": "2023-01-20 05:30:00",
"invoiceDate": "2023-05-23",
"orderStatus": "Shipped",
"companyName": "AkshataTest",
"companyLogo": null,
"city": "Bangalore",
"state": "Karnataka",
"pin_code": "590012",
"customer_name": "Test",
"customer_mobile_num": "9611624922",
"items": [
"AK001 (AK001) X 1",
"AK002 (AK002) X 1"
],
"last_status": null,
"edd_month": "May",
"edd_year": "2023",
"edd_day": "29",
"notes": []
}
]10) Confirm Order start:
V1:
{
"orders": [
{
"invoice_id": 125754881,
"order_id": 63505316,
"queue_message": null,
"queue_status": 1,
"order_priority": 0,
"blockSplit": 0,
"reference_code": "TEST_SHEET1",
"company_name": "AkshataTest",
"warehouseId": 76404,
"seller_gst": "",
"import_warehouse_id": 76404,
"import_warehouse_name": "AkshataTest",
"pickup_address": "Shivaji Nagar",
"pickup_city": "Mumbai",
"pickup_state": "Maharashtra",
"pickup_pin_code": "400011",
"pickup_country": "India",
"order_type": "B2C",
"order_type_key": "retailorder",
"replacement_order": 0,
"marketplace": "Offline",
"marketplace_id": 10,
"qcPassed": 1,
"salesmanUserId": 0,
"order_date": "2023-01-24 05:30:00",
"tat": "2023-01-25 11:58:28",
"available_after": null,
"invoice_date": "2023-05-30 00:00:00",
"import_date": "2023-01-24 11:58:28",
"last_update_date": "2023-05-30 10:47:53",
"manifest_date": null,
"manifest_no": null,
"invoice_number": "CMH1-2324-300",
"marketplace_invoice_num": "TEST_SHEET1",
"shipping_last_update_date": null,
"batch_id": null,
"batch_created_at": null,
"message": null,
"courier": "SelfShip",
"carrier_id": 23,
"awb_number": null,
"order_status": "Confirmed",
"order_status_id": 3,
"shipping_status": null,
"shipping_status_id": null,
"shipping_history": null,
"payment_mode": "PrePaid",
"payment_mode_id": 5,
"payment_gateway_transaction_number": null,
"payment_gateway_name": null,
"buyer_gst": "NA",
"customer_name": "test",
"contact_num": "9611624902",
"address_line_1": "HSR",
"address_line_2": null,
"city": "Banaglore",
"pin_code": "560025",
"state": "Karnataka",
"country": "India",
"email": "test@gmail.com",
"latitude": null,
"longitude": null,
"billing_name": "test",
"billing_address_1": "HSR",
"billing_address_2": null,
"billing_city": "Banaglore",
"billing_state": "Karnataka",
"billing_pin_code": "560025",
"billing_country": "India",
"billing_mobile": "9611624902",
"order_quantity": 1,
"meta": null,
"documents": null,
"total_amount": 377,
"total_tax": 57.5086,
"total_shipping_charge": 0,
"total_discount": 0,
"collectable_amount": 0,
"tcs_rate": 0,
"tcs_amount": 0,
"customer_code": "NA",
"suborders": [
{
"suborder_id": 101137303,
"suborder_num": "76404167454170842854992",
"item_status": "Confirmed",
"shipment_type": "SelfShip",
"suborder_quantity": 1,
"item_quantity": 1,
"returned_quantity": 0,
"cancelled_quantity": 0,
"shipped_quantity": 1,
"batch_codes": null,
"serial_nums": "NA",
"batchcode_serial": "NA",
"batchcode_expiry": "NA",
"tax_type": "GST",
"suborder_history": {
"qc_pass_datetime": "2023-01-24 11:58:28",
"confirm_datetime": "2023-05-30 10:47:53",
"print_datetime": null,
"manifest_datetime": null
},
"meta": null,
"selling_price": "377",
"total_shipping_charge": null,
"total_miscellaneous": null,
"tax_rate": 18,
"tax": 57.5086,
"product_id": 17781868,
"company_product_id": 65142455,
"sku": "test_sku",
"sku_type": "Normal",
"sub_product_count": 1,
"marketplace_sku": "test_sku",
"productName": "test_sku",
"description": null,
"category": "Bag",
"brand": "Unknown",
"model_no": "",
"product_tax_code": null,
"ean": "NA",
"size": "1",
"cost": null,
"mrp": 0,
"weight": 1,
"length": 1,
"width": 1,
"height": 1,
"scheme_applied": 0,
"custom_fields": []
}
]
}
],
"nextUrl": null
}V2:
[
{
"invoice_id": 125755145,
"order_id": 63505504,
"blockSplit": 0,
"reference_code": "TEST_B2C1",
"company_name": "AkshataTest",
"warehouse_id": 76404,
"seller_gst": "",
"assigned_company_name": "AkshataTest",
"assigned_warehouse_id": 76404,
"assigned_company_gst": "",
"warehouse_contact": "",
"pickup_address": "Shivaji Nagar",
"pickup_city": "Mumbai",
"pickup_state": "Maharashtra",
"pickup_state_code": "27",
"pickup_pin_code": "400011",
"pickup_country": "India",
"picker": "NA",
"packer": "NA",
"order_type": "B2C",
"order_type_key": "retailorder",
"replacement_order": 0,
"marketplace": "Offline",
"MarketCId": 123,
"marketplace_id": 10,
"market_shipped": 0,
"merchant_c_id": 123,
"qcPassed": 1,
"salesmanUserId": 0,
"order_date": "2023-01-25 05:30:00",
"tat": "2023-01-26 17:27:33",
"available_after": null,
"invoice_date": "2023-05-30 00:00:00",
"import_date": "2023-01-25 17:27:33",
"last_update_date": "2023-05-30 10:51:15",
"manifest_date": null,
"manifest_no": null,
"invoice_number": "CMH1-2324-301",
"marketplace_invoice_num": "TEST_B2C1",
"shipping_last_update_date": null,
"batch_id": null,
"batch_created_at": null,
"message": null,
"courier": "SelfShip",
"carrier_id": 23,
"awb_number": null,
"package_weight": 100,
"package_height": 10,
"package_length": 10,
"package_width": 10,
"order_status": "Confirmed",
"order_status_id": 3,
"easyecom_order_history": [
{
"status": "Assigned",
"status_id": 2,
"date_time": "2023-01-25 17:27:33"
},
{
"status": "Confirm new",
"status_id": 17,
"date_time": "2023-05-30 10:51:15"
},
{
"status": "Confirmed",
"status_id": 3,
"date_time": "2023-05-30 10:51:15"
}
],
"shipping_status": null,
"shipping_status_id": null,
"tracking_url": null,
"shipping_history": null,
"payment_mode": "COD",
"payment_mode_id": 2,
"payment_gateway_transaction_number": null,
"buyer_gst": "NA",
"customer_name": "Test",
"shipping_name": "Test",
"contact_num": "9999999999",
"address_line_1": "HSR",
"address_line_2": null,
"city": "Bangalore",
"pin_code": "590012",
"state": "Karnataka",
"state_code": "29",
"country": "India",
"country_code": 0,
"email": "test@gmail.com",
"latitude": null,
"longitude": null,
"billing_name": "Test",
"billing_address_1": "HSR",
"billing_address_2": null,
"billing_city": "Bangalore",
"billing_state": "Karnataka",
"billing_state_code": "29",
"billing_pin_code": "590012",
"billing_country": "India",
"billing_mobile": "9999999999",
"order_quantity": 6,
"documents": null,
"invoice_documents": null,
"collectable_amount": 10,
"total_amount": 10,
"total_tax": 1.5258,
"breakup_types": {
"Item Amount Excluding Tax": 0,
"Shipping Excluding Tax": 8.474699999999999,
"Item Amount CGST": 0,
"Item Amount SGST": 0,
"Shipping CGST": 0.7629,
"Shipping SGST": 0.7629
},
"tcs_rate": 0,
"tcs_amount": 0,
"customer_code": "NA",
"order_items": [
{
"suborder_id": 101137809,
"suborder_num": "76404167464785321453252",
"invoicecode": null,
"item_collectable_amount": 0,
"shipment_type": "SelfShip",
"suborder_quantity": 1,
"item_quantity": 1,
"returned_quantity": 0,
"cancelled_quantity": 0,
"shipped_quantity": 1,
"tax_type": "GST",
"product_id": 17781814,
"company_product_id": 65142281,
"sku": "AK001",
"expiry_type": 0,
"sku_type": "Normal",
"sub_product_count": 1,
"marketplace_sku": "AK001",
"listing_ref_number": "-",
"listing_id": "-",
"productName": "AK001",
"description": "Simple Product 1",
"category": "Bottle",
"brand": "Test",
"brand_id": 7070022,
"model_no": "12345",
"product_tax_code": "12345",
"ean": "987654321",
"size": "10",
"cost": 10,
"mrp": 10,
"weight": 10,
"length": 10,
"width": 10,
"height": 10,
"scheme_applied": 0,
"custom_fields": [],
"serials": [
null
],
"tax_rate": 18,
"selling_price": "2.5",
"breakup_types": {
"Item Amount Excluding Tax": 0,
"Shipping Excluding Tax": 2.1186,
"Item Amount CGST": 0,
"Item Amount SGST": 0,
"Shipping CGST": 0.1907,
"Shipping SGST": 0.1907
},
"station_scanned_quantity": 0,
"batch_scanned_quantity": 0,
"assigned_quantity": 1
},
{
"suborder_id": 101137810,
"suborder_num": "7640416746478534098936",
"invoicecode": null,
"item_collectable_amount": 0,
"shipment_type": "SelfShip",
"suborder_quantity": 1,
"item_quantity": 1,
"returned_quantity": 0,
"cancelled_quantity": 0,
"shipped_quantity": 1,
"tax_type": "GST",
"product_id": 17781814,
"company_product_id": 65142281,
"sku": "AK001",
"sku_type": "Normal",
"sub_product_count": 1,
"marketplace_sku": "AK001",
"listing_ref_number": "-",
"listing_id": "-",
"productName": "AK001",
"description": "Simple Product 1",
"category": "Bottle",
"brand": "Test",
"brand_id": 7070022,
"model_no": "12345",
"product_tax_code": "12345",
"ean": "987654321",
"size": "10",
"cost": 10,
"mrp": 10,
"weight": 10,
"length": 10,
"width": 10,
"height": 10,
"scheme_applied": 0,
"custom_fields": [],
"serials": [
null
],
"tax_rate": 18,
"selling_price": "2.5",
"breakup_types": {
"Item Amount Excluding Tax": 0,
"Shipping Excluding Tax": 2.1186,
"Item Amount CGST": 0,
"Item Amount SGST": 0,
"Shipping CGST": 0.1907,
"Shipping SGST": 0.1907
},
"station_scanned_quantity": 0,
"batch_scanned_quantity": 0,
"assigned_quantity": 1
},
{
"suborder_id": 101137811,
"suborder_num": "76404167464785463667023",
"invoicecode": null,
"item_collectable_amount": 0,
"shipment_type": "SelfShip",
"suborder_quantity": 1,
"item_quantity": 1,
"returned_quantity": 0,
"cancelled_quantity": 0,
"shipped_quantity": 1,
"tax_type": "GST",
"product_id": 17781814,
"company_product_id": 65142281,
"sku": "AK001",
"sku_type": "Normal",
"sub_product_count": 1,
"marketplace_sku": "AK001",
"listing_ref_number": "-",
"listing_id": "-",
"productName": "AK001",
"description": "Simple Product 1",
"category": "Bottle",
"brand": "Test",
"brand_id": 7070022,
"model_no": "12345",
"product_tax_code": "12345",
"ean": "987654321",
"size": "10",
"cost": 10,
"mrp": 10,
"weight": 10,
"length": 10,
"width": 10,
"height": 10,
"scheme_applied": 0,
"custom_fields": [],
"serials": [
null
],
"tax_rate": 18,
"selling_price": "2.5",
"breakup_types": {
"Item Amount Excluding Tax": 0,
"Shipping Excluding Tax": 2.1186,
"Item Amount CGST": 0,
"Item Amount SGST": 0,
"Shipping CGST": 0.1907,
"Shipping SGST": 0.1907
},
"station_scanned_quantity": 0,
"batch_scanned_quantity": 0,
"assigned_quantity": 1
},
{
"suborder_id": 101137812,
"suborder_num": "76404167464785491303511",
"invoicecode": null,
"item_collectable_amount": 0,
"shipment_type": "SelfShip",
"suborder_quantity": 3,
"item_quantity": 3,
"returned_quantity": 0,
"cancelled_quantity": 0,
"shipped_quantity": 3,
"tax_type": "GST",
"product_id": 17781815,
"company_product_id": 65142285,
"sku": "AK002",
"sku_type": "Normal",
"sub_product_count": 1,
"marketplace_sku": "AK002",
"listing_ref_number": "-",
"listing_id": "-",
"productName": "AK002",
"description": "Simple Product 2",
"category": "Bottle",
"brand": "Test",
"brand_id": 7070022,
"model_no": "1235",
"product_tax_code": null,
"ean": "987654322",
"size": "11",
"cost": 11,
"mrp": 11,
"weight": 11,
"length": 11,
"width": 11,
"height": 11,
"scheme_applied": 0,
"custom_fields": [],
"serials": [
null,
null,
null
],
"tax_rate": 18,
"selling_price": "2.5",
"breakup_types": {
"Item Amount Excluding Tax": 0,
"Shipping Excluding Tax": 2.1189,
"Item Amount CGST": 0,
"Item Amount SGST": 0,
"Shipping CGST": 0.19080000000000003,
"Shipping SGST": 0.19080000000000003
},
"station_scanned_quantity": 0,
"batch_scanned_quantity": 0,
"assigned_quantity": 3
}
]
}
]
11) Fetch order:
Once the order is fetched from Marketplaces, it will trigger fetch order action and fetch order data will be posted on the provided URL.
[ { "invoice_id": 129082805, "order_id": 63563587, "blockSplit": 0, "reference_code": "1028", "company_name": "TestSanjay", "warehouse_id": 76261, "seller_gst": null, "assigned_company_name": "TestSanjay", "assigned_warehouse_id": 76261, "assigned_company_gst": null, "warehouse_contact": null, "pickup_address": "Plot 6, Sharma Colony, Nandpuri Road, 22 Godam", "pickup_city": "Jaipur", "pickup_state": "Rajasthan", "pickup_state_code": "8", "pickup_pin_code": "302006", "pickup_country": "India", "picker": "NA", "packer": "NA", "order_type": "B2C", "order_type_key": "retailorder", "replacement_order": 0, "marketplace": "Shopify13", "MarketCId": 8447, "marketplace_id": 179, "market_shipped": 0, "merchant_c_id": 8447, "qcPassed": 1, "salesmanUserId": 0, "order_date": "2023-06-15 09:41:42", "tat": "2023-06-16 19:12:23", "available_after": null, "invoice_date": "", "import_date": "2023-06-15 19:12:23", "last_update_date": "2023-06-15 19:12:22", "manifest_date": null, "manifest_no": null, "invoice_number": null, "marketplace_invoice_num": null, "shipping_last_update_date": null, "batch_id": null, "batch_created_at": null, "message": null, "courier": "SelfShip", "carrier_id": 23, "awb_number": null, "package_weight": 102, "package_height": 4, "package_length": 4, "package_width": 4, "order_status": "Open", "order_status_id": 1, "easyecom_order_history": null, "shipping_status": null, "shipping_status_id": null, "tracking_url": null, "shipping_history": null, "payment_mode": "COD", "payment_mode_id": 2, "payment_gateway_transaction_number": null, "buyer_gst": "NA", "customer_name": "1st stage", "shipping_name": "btm", "contact_num": "9999999999", "address_line_1": "BTM Layout", "address_line_2": null, "city": "Bengaluru", "pin_code": "560029", "state": "Karnataka", "state_code": "29", "country": "India", "country_code": 0, "email": "wertyu987654@gmail.com", "latitude": null, "longitude": null, "billing_name": "btm 1st stage", "billing_address_1": "BTM Layout", "billing_address_2": null, "billing_city": "Bengaluru", "billing_state": "Karnataka", "billing_state_code": "29", "billing_pin_code": "560029", "billing_country": "India", "billing_mobile": "9876543212", "order_quantity": 4, "documents": null, "invoice_documents": null, "collectable_amount": 1540.97, "total_amount": 1413.73, "total_tax": 215.654, "breakup_types": {]"Item Amount Excluding Tax": 1198.0763, "Item Amount IGST": 215.65370000000001 }, "tcs_rate": 0, "tcs_amount": 0, "customer_code": "NA", "order_items": [ { "suborder_id": 101210446, "suborder_num": "11981982826590", "invoicecode": null, "item_collectable_amount": 118.81, "shipment_type": "SelfShip", "suborder_quantity": 1, "item_quantity": 1, "returned_quantity": 0, "cancelled_quantity": 0, "shipped_quantity": 1, "tax_type": "GST", "product_id": 17776461, "company_product_id": 65103655, "sku": "nsku03", "expiry_type": 0, "sku_type": "Normal", "sub_product_count": 1, "marketplace_sku": "SKU-1", "listing_ref_number": "41832605057118", "listing_id": "6698715742302", "productName": "sdfgncx03", "description": null, "category": "CAT002", "brand": "SKU13", "brand_id": 7137984, "model_no": "8467", "product_tax_code": null, "ean": "89467", "size": "50", "cost": 302, "mrp": 202, "weight": 102, "length": 4, "width": 4, "height": 4, "scheme_applied": 0, "custom_fields": [], "serials": [
12) Cancel order:
Once the user cancel the order, it will trigger cancel order action and cancelled order data will be posted on the provided URL
Version-2 (V2):
[ { "invoice_id": 174409094, "order_id": 91295577, "blockSplit": 0, "reference_code": "AWB_A_ORDER_15", "company_name": "testdipak", "warehouse_id": 59032, "seller_gst": null, "assigned_company_name": "testdipak", "assigned_warehouse_id": 59032, "assigned_company_gst": null, "warehouse_contact": null, "pickup_address": "rtgyu", "pickup_city": "ftgyhu", "pickup_state": "Karnataka", "pickup_state_code": "29", "pickup_pin_code": "590010", "pickup_country": "India", "picker": "NA", "packer": "NA", "order_type": "B2C", "order_type_key": "retailorder", "replacement_order": 0, "marketplace": "Offline", "MarketCId": 123, "marketplace_id": 10, "market_shipped": 0, "merchant_c_id": 123, "qcPassed": 1, "salesmanUserId": 0, "order_date": "2022-12-09 05:30:00", "tat": "2022-12-10 11:45:46", "available_after": null, "invoice_date": "2022-12-09 00:00:00", "import_date": "2022-12-09 11:45:46", "last_update_date": "2023-09-06 17:36:37", "manifest_date": null, "manifest_no": null, "invoice_number": null, "marketplace_invoice_num": "AWB_A_ORDER_15", "shipping_last_update_date": null, "batch_id": 1022237, "batch_created_at": "2023-01-12 17:27:45", "message": null, "courier_aggregator_name": null, "courier": "SelfShip", "carrier_id": 23, "awb_number": null, "package_weight": "2", "package_height": "2", "package_length": "2", "package_width": "2", "order_status": "Cancelled", "order_status_id": 9, "easyecom_order_history": [ { "status": "Cancelled", "status_id": 9, "date_time": "2023-09-06 17:36:36" } ], "shipping_status": null, "shipping_status_id": null, "tracking_url": null, "shipping_history": null, "payment_mode": "COD", "payment_mode_id": 2, "payment_gateway_transaction_number": null, "buyer_gst": "NA", "customer_name": "defgh", "shipping_name": "defgh", "contact_num": "9611624901", "address_line_1": "fghjk", "address_line_2": null, "city": "rftgyuj", "pin_code": "590012", "state": "Karnataka", "state_code": "29", "country": "India", "country_code": 0, "email": "sdrg@gmail.com", "latitude": null, "longitude": null, "billing_name": "defgh", "billing_address_1": "fghjk", "billing_address_2": null, "billing_city": "rftgyuj", "billing_state": "Karnataka", "billing_state_code": "29", "billing_pin_code": "590012", "billing_country": "India", "billing_mobile": "9611624901", "order_quantity": 20, "documents": null, "invoice_documents": null, "collectable_amount": 0, "total_amount": 0, "total_tax": 0, "breakup_types": { "Item Amount Excluding Tax": 0, "Item Amount CGST": 0, "Item Amount SGST": 0 }, "tcs_rate": 0, "tcs_amount": 0, "customer_code": "NA", "order_items": [ { "suborder_id": 138115933, "suborder_num": "59032167056654641986277", "invoicecode": null, "item_collectable_amount": 0, "shipment_type": "SelfShip", "suborder_quantity": 10, "item_quantity": 10, "returned_quantity": 0, "cancelled_quantity": 10, "shipped_quantity": 0, "tax_type": "GST", "product_id": 19842860, "company_product_id": 77827995, "sku": "Dip1033", "expiry_type": 0, "sku_type": "Normal", "sub_product_count": 1, "marketplace_sku": "Dip1033", "listing_ref_number": "-", "listing_id": "-", "productName": "Dip1033", "description": null, "category": "CC5", "brand": "Test", "brand_id": 7070022, "model_no": "1234567890-", "product_tax_code": null, "ean": "NA", "size": "1", "cost": 1, "mrp": 1, "weight": 1, "length": 1, "width": 1, "height": 1, "scheme_applied": 0, "custom_fields": [], "serials": [ null, null, null, null, null, null, null, null, null, null ], "tax_rate": 18, "selling_price": null, "breakup_types": { "Item Amount Excluding Tax": 0, "Item Amount CGST": 0, "Item Amount SGST": 0 }, "station_scanned_quantity": 0, "batch_scanned_quantity": 0, "assigned_quantity": 10 }, { "suborder_id": 138115938, "suborder_num": "59032167056654764983942", "invoicecode": null, "item_collectable_amount": 0, "shipment_type": "SelfShip", "suborder_quantity": 10, "item_quantity": 10, "returned_quantity": 0, "cancelled_quantity": 10, "shipped_quantity": 0, "tax_type": "GST", "product_id": 19842861, "company_product_id": 77827996, "sku": "Dip1044", "sku_type": "Normal", "sub_product_count": 1, "marketplace_sku": "Dip1044", "listing_ref_number": "-", "listing_id": "-", "productName": "Dip1044", "description": null, "category": "CC5", "brand": "Test", "brand_id": 7070022, "model_no": "1234567890-", "product_tax_code": null, "ean": "NA", "size": "1", "cost": 1, "mrp": 1, "weight": 1, "length": 1, "width": 1, "height": 1, "scheme_applied": 0, "custom_fields": [], "serials": [ null, null, null, null, null, null, null, null, null, null ], "tax_rate": 18, "selling_price": null, "breakup_types": { "Item Amount Excluding Tax": 0, "Item Amount CGST": 0, "Item Amount SGST": 0 }, "station_scanned_quantity": 0, "batch_scanned_quantity": 0, "assigned_quantity": 10 } ], "location_key": "wo3484777024" } ]
Along with this there are 2 more tabs in the webhook page namely 'Webhook Trigger History' and 'User Activity History', the details for both both this tab have been provided below.
Webhook Trigger History:
Via this page, all the events that have been triggered from EasyEcom to your interface will be shown here along with date and timestamp. By default, the trigger history of two days will be shown. However, a filters provided can be used by you to search the results as per your requirements.
In the Webhook history, an (eye) option is now added which will show the complete details of the API call time and the response time.
In the Webhook history, an (eye) option is now added which will show the complete details of the API call time and the response time.
User Activity History:
In this page, the changes made by any user in the webhook configuration will be shown here. The username, the changes done in webhook config page, date and timestamp, IP address will be tracked and displayed in this page. Sample snapshot have been provided below
Related Articles
How to Configure GRN Screen
Introduction To run efficiently, warehouse operations must start with an organized receiving process. Upon receiving, the SKUs/items are collected and stored based on certain criteria/parameters like pricing, manufacturing date, expiry date, etc. ...Wave Picking Configuration
What is Wave Picking? Wave picking is a way of short-interval scheduling where the system creates picklists at certain intervals. Managers, using the WMS, may assign groups of orders into short intervals called "waves" automatically, to initially ...How to go Live on EasyEcom?
If you are starting with your EasyEcom account for the first time, click here (after going through this onboarding guide) to start your onboarding process. There are 4 easy steps to go Live on the EasyEcom dashboard. Step 1: Select your marketplace ...EasyEcom Outbound Webhooks - Handling Invalid Responses
1. Introduction This documentation aims to provide you with a clear understanding of how EasyEcom handles invalid responses for outbound webhooks. Our goal is to ensure your webhook requests remain reliable and effective. 2. Feature Overview Outbound ...Integrating Payed with EasyEcom
Please follow the below-mentioned process to integrate Payed with EasyEcom. Step 1: Click on the “Account Settings” option Once you click on the meatball menu, you will see the following fly-out menu: Here click on the “Account Settings” option. Step ...
